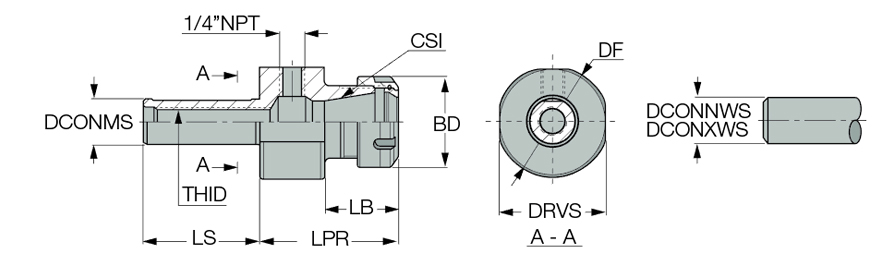

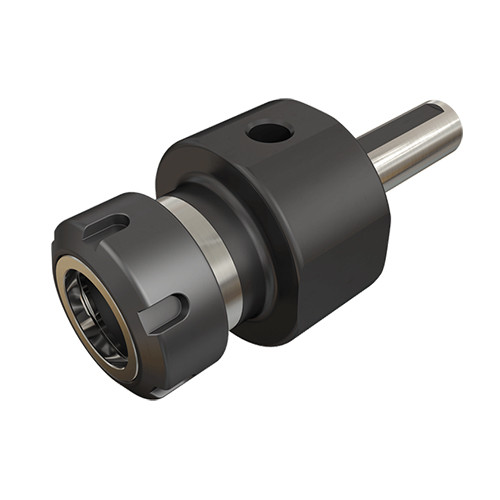

ST 40X 75 ER32S
| Shank Size (SS) | 40 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter (BD) | 50 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Protruding Length (LPR) | 77 mm | Measurement Type | Metric |
| Shank Length (LS) | 75 mm | Drive Size (DRVS) | 59 mm |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
Product Features
| Family Description | DIN 6499 ER collet chucks with coolant holes and cylindrical shanks with a clamping flat. | Country of Origin | Israel |
Shipping Info
Package Weight
3.397
