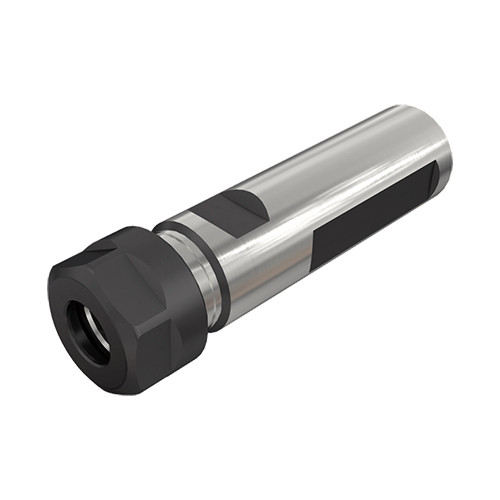

ST 40X 75 ER40 F
Collet Chuck ; 40 Shank Size ; ER40 Connection Size ; 40 mm Shank Dia. ; 3 mm Min. Capacity
| Shank Size (SS) | 40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 3 mm |

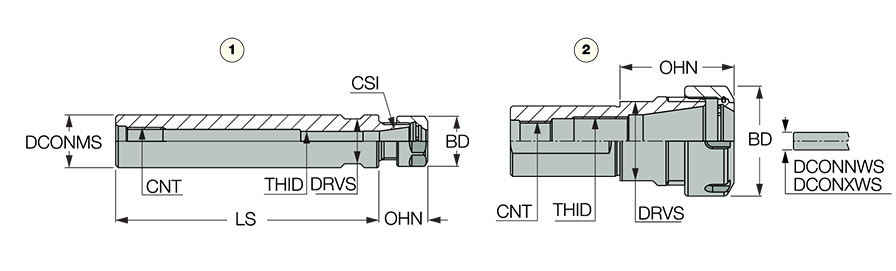

| Connection Size (CSI) | ER40 | Figure | 2 |
| Protruding Length (LPR) | 60 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Drive Size (DRVS) | 46 mm |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | DIN 6499 ER collet chucks with straight shanks | Country of Origin | Israel |
| Remarks | F suffix indicates a flat on the shank |
Shipping Info
Additional Fees and Notes
0
Package Weight
2.493
