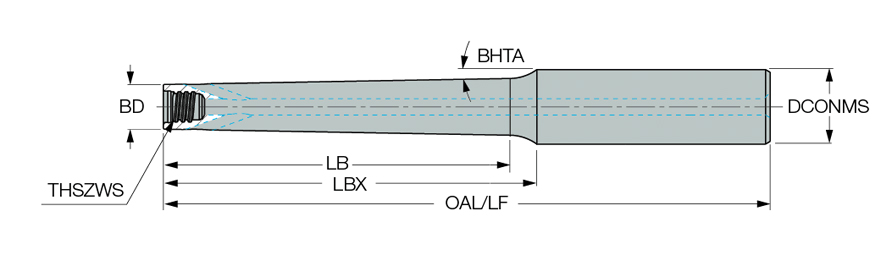

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T08 | Body Diameter (BD) | 11.6 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Body Length (LB) | 97.8 mm |
| Material | Carbide | Weight of Item (WT) | 0.33 Kg |
| Overall Length (OAL) | 150 mm | Measurement Type | Metric |
| Body Length Maximum (LBX) | 100 mm | Rotational Speed Maximum (RPMX) | 29970 Rev/min |
| Coolant Supply Property (CSP) | External | Body Material | Carbide |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features

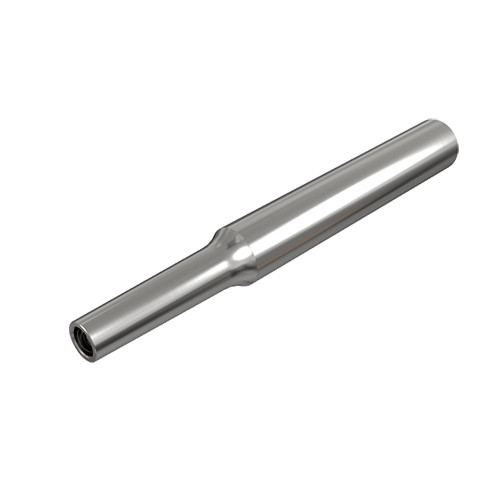

| Family Description | MULTI-MASTER, 89° conical shanks for solid carbide interchangeable milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection. Shank Material (Shank m.): S-steel,C-carbide,W-tungsten. |
