| Connection Thread Nominal Size Workpiece Side (THSZWS) | T08 | Body Length (LB) | 36 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Weight of Item (WT) | 0.13 Kg |
| Material | Carbide | Measurement Type | Metric |
| Overall Length (OAL) | 85 mm | Rotational Speed Maximum (RPMX) | 60000 Rev/min |
| Body Length Maximum (LBX) | 37.7 mm | Body Material | Carbide |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 11.6 mm |
Product Features

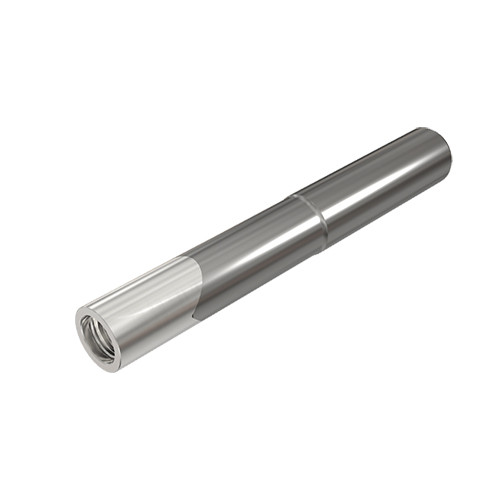

| Family Description | MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection |
Shipping Info
Package Weight
0.287
