DIN69871 50 SRKIN 12X 80

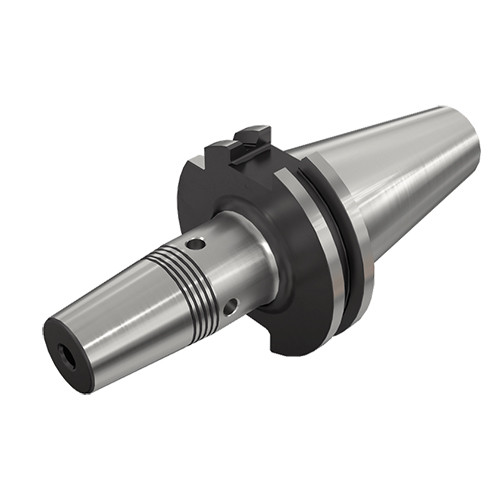

Shrink Fit Holder ; 12 mm Hole Dia. ; 50 mm Shank Dia. ; 181.75 mm OAL ; Series SHRINK

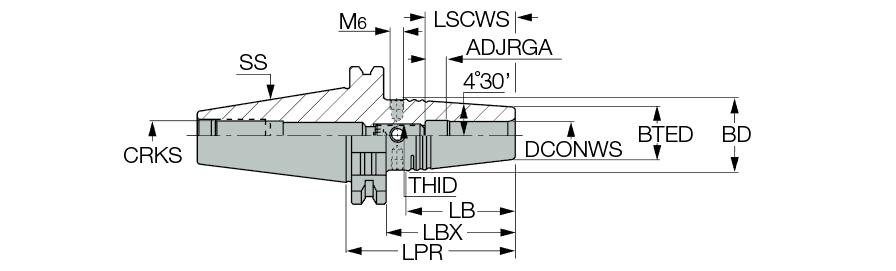

| Connection Diameter Machine Side (DCONMS) | 50 mm | Shank Standard | DIN69871 |
| Connection Diameter Workpiece Side (DCONWS) | 12 mm | Series/List # | SHRINK |
| Shank Size (SS) | 50 | Measurement Type | Metric |
| Body Length (LB) | 51 mm | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 80 mm | Body Material | Steel |
| Overall Length (OAL) | 181.75 mm | Connection Code Machine Side (CCMS) | DIN69871 |
Product Features
| Family Description | Thermal shrink chucks with integral DIN 69871 form AD taper shank for solid carbide HSS and steel tools with h6 tolerance. | Country of Origin | India |
| Remarks | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info |
Shipping Info
Package Weight
6.435
