SK40 HYDRO 16X64.5 HD

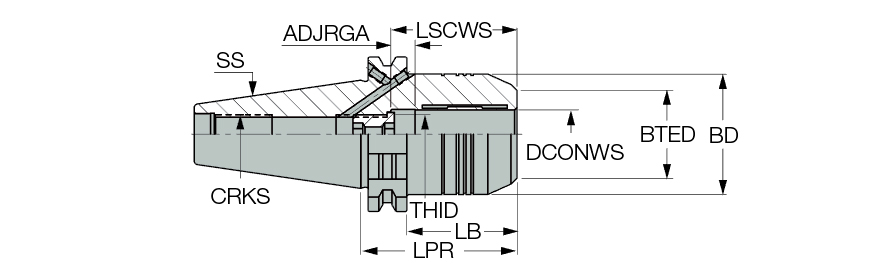

| Connection Diameter Machine Side (DCONMS) | #63 | Shank Type | HSK |
| Body Length Maximum (LBX) | 3.38″ | Shank Size (SS) | 40 |
| Body Length (LB) | 45.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 16 mm | Nose Length | 1.5354″ |
| Body Diameter (BD) | 49.25 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 64.5 mm | Body Material | Steel |
| Overall Length (OAL) | 4.64″ | Connection Code Machine Side (CCMS) | DIN69871 |
Product Features
| Family Description | Heavy duty, short hydraulic chucks with DIN69871 form ADB shanks | Country of Origin | Germany |
Shipping Info
Package Weight
3.020
